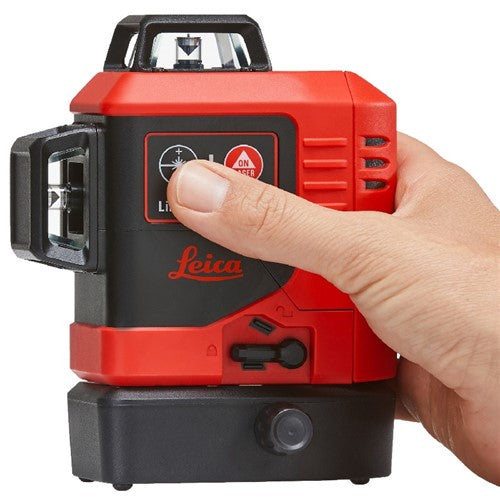

LEICA Lino L6R (Li-Ion)

LEICA Lino L6R (Li-Ion). The Leica Lino L6R/L6G is a self-levelling multifunctional laser. It combines the advantage of three 360° line lasers in one tool and an integrated fine adjustment knob. It is a reliable precision laser for any kind of tasks like precise framing, levelling, plumbing, transfering and setting out right angles. It supports you on the job site with six intersection points (front, back, right, left, up, down) which are arranged precisely in 90° to each other. The device can be used indoors and in outdoor situations in case of limited dust and at most splash water effects according to IP54.

Features and Benefits

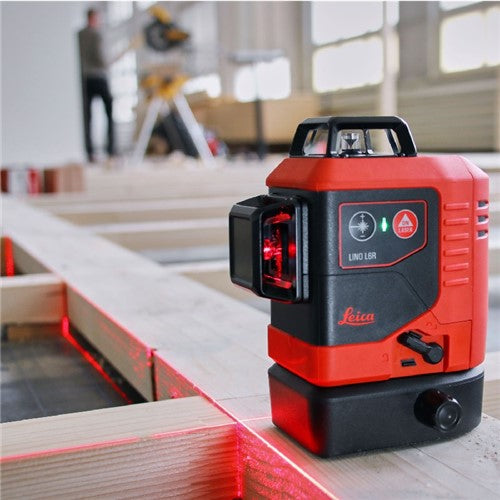

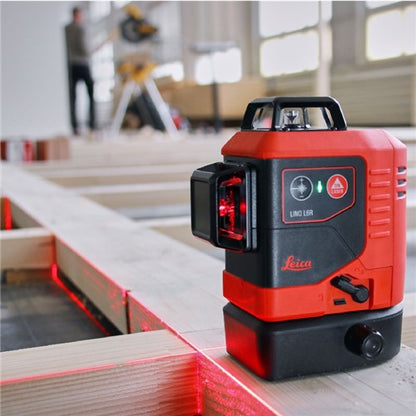

PRECISION ALIGNMENT RED MULTI-LINE LASER
Three 360 degree thin, crisp and clearly visible red laser lines, two vertical, and one horizontal, which are exactly at the right angle (90°) to one another.


EASY POSITIONING
The precision adjustment handles, and the laser's eccentric base allow the laser lines to rotate by ± 10 degrees around the plumb point while the line-laser keeps its position; allowing for quick and precise setup for any alignment, plumbing, levelling or squaring tasks.


UNINTERRUPTED WORKING
The triple-power concept ensures an uninterrupted workflow. Rechargeable Li-Ion batteries power the Lino L6R for up to 36 hours; alternatively, Alkaline batteries or simply its charger can be used. The strength of the laser lines is adjustable (100/75/50 percent). This not only makes the red laser lines thinner, but also increases the operating time.


WORKING RANGE
The 360 degree laser lines have an operating range of up to 25 meters / 82 feet, depending on lighting conditions. This means that the Lino L6R achieves laser line projections of up to 50 meters / 164 feet in diameter. This range can be easily extended up to 140 meters / 460 feet by using the RGR200 laser receiver.


CONSTRUCTION SITE PROOF
The Lino L6R is designed for tough environments. It is shock absorbent and protected against dust and splash water (IP54).


MULTI-DIRECTIONAL ALIGNMENT
You can position the cross section (plumb point) of the two vertical laser lines where it is required and then rotate the two horizontal laser lines by ± 10 degrees while the position of the plumb point stays in place. This allows you to position the laser lines of the Lino L6R much faster.


PREFERRED SETTINGS
You can individually select each red 360 degrees laser line and its power mode to be turned on or off when the device starts up; meaning your 3x360 degrees laser remembers your preferred settings on set up.


SELF-LEVELING
The Lino L6R is a self-levelling multi- line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level and no manual alignment is needed.


INCLUDED:
Leica Lino L6
Rugged case
Laser target
Battery
TWIST 250 magnetic multi functional adapter
UAL 130 wall-mount adapter
Quick start guide, safety instructions, calibration certificate, warranty card
