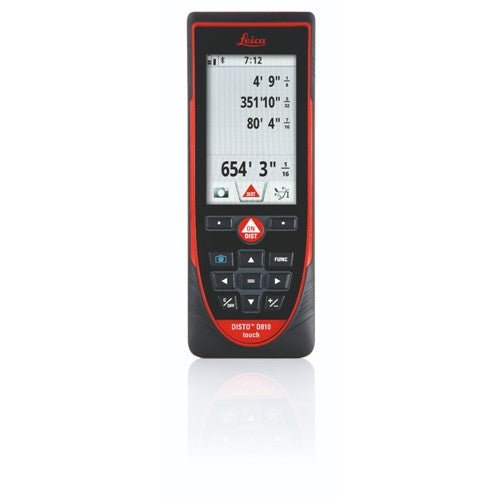

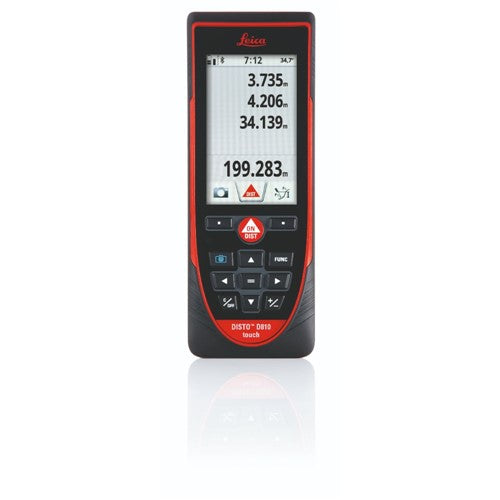

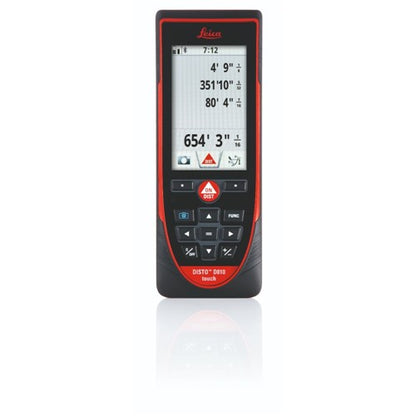

The Disto D810 is the first laser distance measuring device with a modern touchscreen that enables intuitive and fast operation. All functions are easily accessible with normal gestures such as panning and zooming with two fingers. The Disto D810 has several indirect measurement functions. The specially developed inclination sensor guarantees extremely precise measurement results.
Product highlights:
- Touchscreen for quick and easy access to all functions

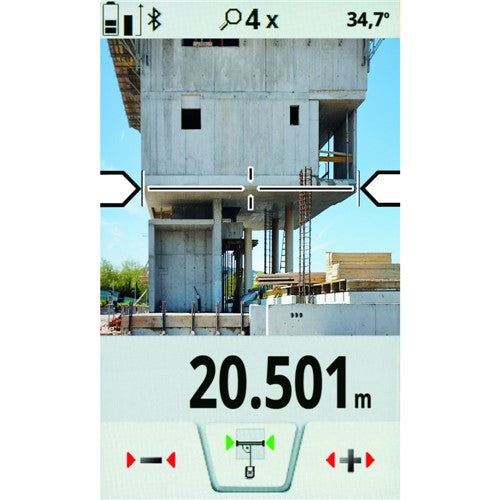

- Digital target finder so that the target can be seen clearly on the display, even if the laser point can no longer be seen with the naked eye
- overview camera
- Measure in picture function
- Precise 360° inclination sensor for inclination measurements and a variety of indirect measurements

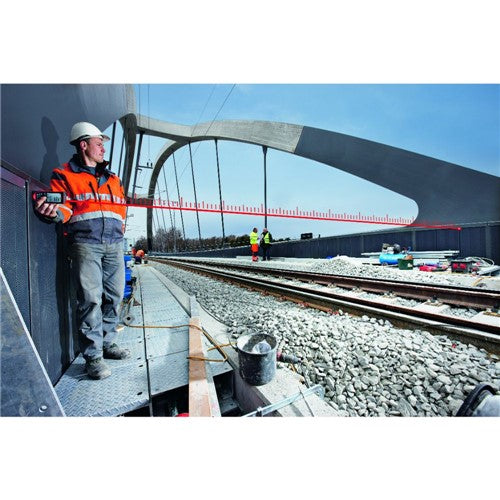

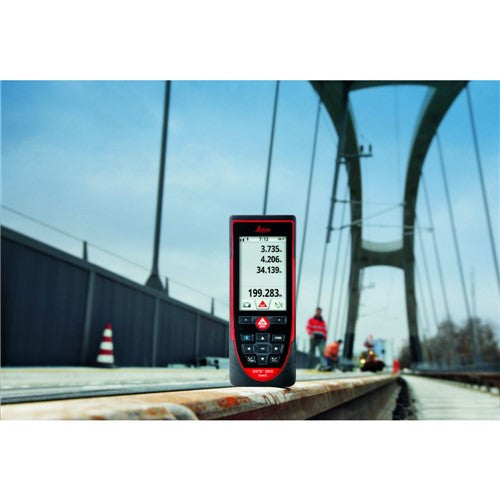

A revolutionary feature of the Disto D810 touch laser rangefinder is the integrated camera: it has never been so easy to determine the width, height, area or even the diameter of an object. A measurement with the correct angles to the object is sufficient. The desired measurement is then marked with two arrows and the measured value appears on the display. In addition to the zoom levels of the pointfinder, there is an overview camera for large objects. With the camera function of the Leica Disto D810 touch you can measure long distances or take pictures or screenshots to record and document measurements. These images can be quickly and easily downloaded to a computer via the USB interface. In this way, the data about the measured target points is not lost.

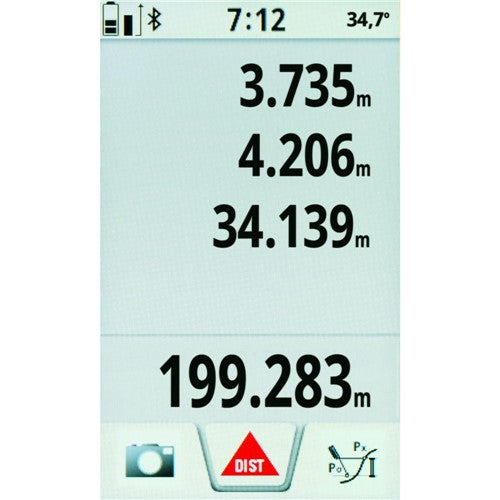

Touchscreen function

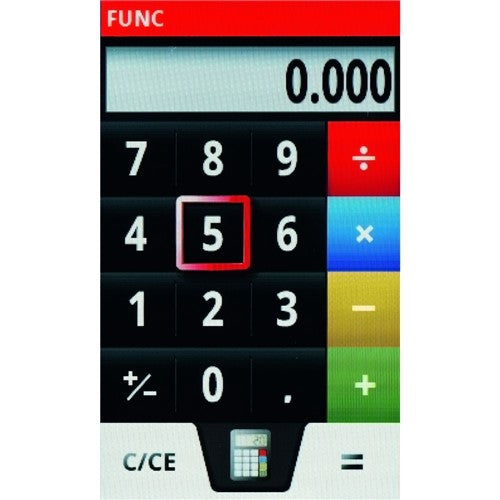

The large touchscreen enables quick and intuitive operation. Functions can be accessed easily and quickly using familiar gestures such as swiping or zooming with two fingers. Measurements can also be triggered via the touchscreen.
Documentation with photos
Thanks to the camera function of the Leica DISTO D810 touch, photos or display photos can be taken for documentation and loaded onto a computer via the USB interface. In this way, no details of the measured target points are lost.
Measurements in the photo
Determining dimensions in a photo is revolutionary. Only the distance to the object is measured. Then the desired result can be marked with arrows in the display and the measured value appears.
Highest precision

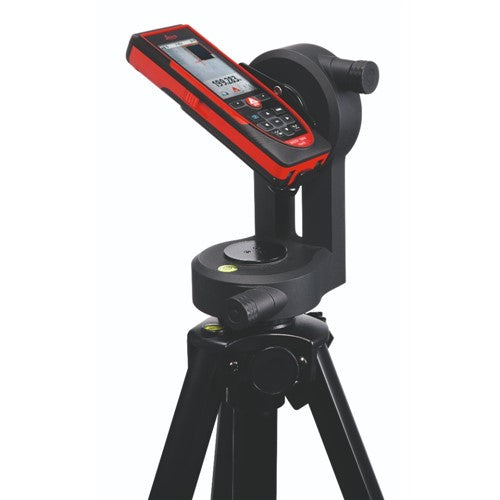

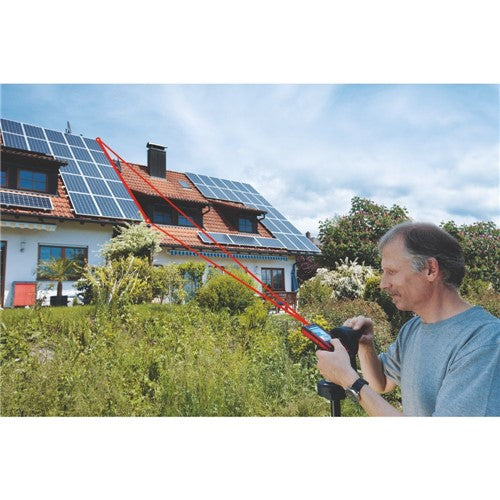

The Leica DISTO D810 touch offers a variety of indirect measurement functions. Thanks to the specially developed tilt sensor, the results achieved are very precise. Even greater accuracy is achieved by using the Leica FTA 360 tripod adapter with fine drive.
Technical specifications:
- Typical measurement accuracy: ± 1.0 mm
- Range: 0.05 to 250 m
- Certified measurements: according to ISO 16331-1
- Tilt sensor: 360°
- Color display with point finder: 4x zoom

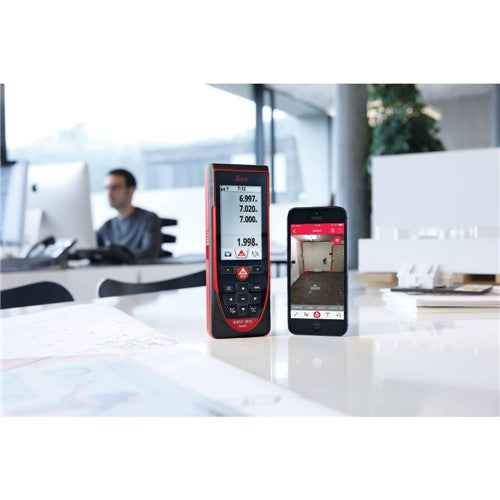

- Data interface: Bluetooth Smart
- Memory: 30 measurements / 80 photos (.jpg)
- Operating time per battery charge: up to 8 hours (up to 4,000 measurements)
- Batteries: Lithium-ion battery
- Protection class: IP54 (dust and splash-proof)

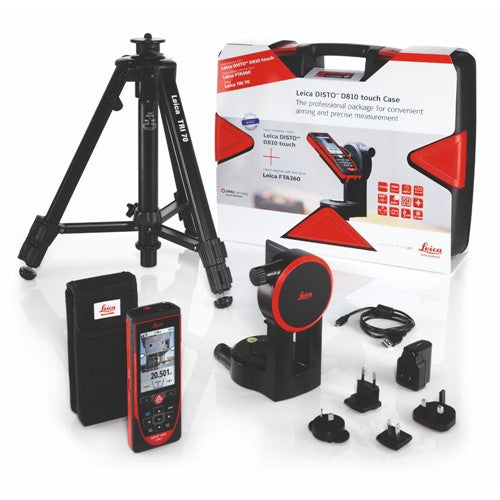

Scope of delivery:
- Leica DISTO D810 touch
- wrist strap
- Fanny pack
- Charger with four different plugs
- calibration certificate
- quickstart
- Leica TRI 70 tripod
- Leica FTA 360 adapter
- hard case
